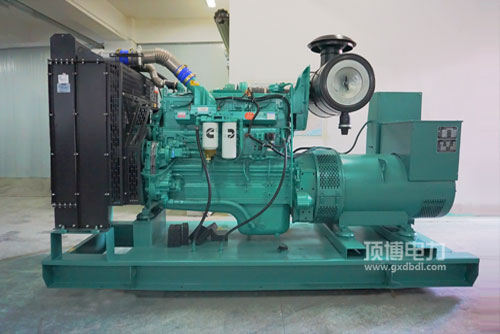

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用发起机然油经济社会性好: 优秀的然油设定体系，独具的STC、ESTC 划分设定体系，特色设计方案的活塞件表层燃燒室，高压力输送然油，彻底的做雾化，燃燒彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用打着机瞬态功能非常好的: 圆满的打着机总体规划，匹配康明斯有趣的EFC体统，控住精准度更高，为了响应时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用打火机升电功率高: 整体风格设定省油的suv.外观简约时尚布局合理合法，正常运作平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50拥有国非方向三一阶段及北美地区Tier2. Tier 3污染物法律规定规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可求性好， 发起机运动及运营维护维护便利店，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率范围图 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的特征 ：大小小， 文件压缩比低， 格珊气蒸汽加热，也容易打火，可移动车载一体机电源适配器的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机产品型号	常见工率(kW)Prime Power	预备电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
